Home » Products » Table Top Scanner » DS9208 Table Top Barcode Scanner

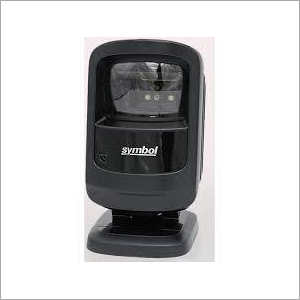

DS9208 Table Top Barcode Scanner

DS9208 Table Top Barcode Scanner
DS9208 Table Top Barcode Scanner
Send Inquiry
Product Code : ZEBRA DS9208 HANDS-FREE IMAGER
Brand Name : ZEBRA
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 8500.00 - 9000.00 INR
  • Price
  • 9000 INR
Product Description

Table Top Barcode Scanner offered by us is highly appreciated for having stylish structural configuration with robust body. It is required for quickly reading barcodes in warehouses, shopping malls, and supermarkets for reducing cashier's fatigue and easing his operation. This scanner is highly sensitive in nature with ability to read slightly faded code. Table Top Barcode Scanner is hassle-free to install and is known to have long service life with low maintenance requirement.

Features:

  • ABS plastic made body
  • Good dust resistance
  • Light in weight

Technical Specifications

PHYSICAL CHARACTERISTICS


Dimensions

5.512 in. H x 3.232 in. W x 3.150 in. D

14.0 cm H x 8.21 cm W x 8.0 cm D

Weight

9.5 oz./269 g

Voltage and Current

Idle: 5 ± 10% VDC @ 150ma average

Scanning: 5 ± 10% VDC @ 230ma average

Color

Midnight Black

USER ENVIRONMENT


Operating Temp.

32° F to 104° F / 0° to 40° C

Drop Specs

Withstands multiple 5 ft./1.5 m drops to concrete

Humidity

5% to 85% RH (non-condensing)

Ambient Light Immunity

Immune to natural and artificial ambient light (i.e. sunlight, incandes cent, fluorescent,mercury vapor, sodium vapor)

SYMBOLOGY DECODE CAPABILITY


1D

UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code), Code 39 (Standard, Full ASCII, Trioptic,Code 32 (Italian Pharmacode), Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codabar/NW7, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 Data- Bar Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded,Expanded Stacked)

PDF417 (and variants)

PDF417 (Standard, Macro), MicroPDF417(Standard, Macro), Composite Codes (CC-A,CC-B, CC-C)

2D

TLC-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro)

Postal

U.S. Postnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, UPU FICS 4 State Postal, USPS 4CB, Canadian Post (Postbar)

Nominal Working Range

Code 39 – 5 mil:0 – 4.5 in. (0 – 11.4 cm)

UPC/EAN – 10 mil (80%):0 – 8.5 in. (0 – 21.6 cm)

UPC/EAN – 13 mil (100%):0 – 10.5 in. (0 – 26.7 cm)

PDF417 – 6.6 mil:0 – 3.8 in. (0 – 9.6 cm)

Datamatrix – 10 mil:0 – 4.7 in. (0 – 11.9 cm)

Minimum Resolution

Code 39 – 4 mil

UPC – 7.8 mil (60%)

PDF417 – 5 mil

Datamatrix – 7.5 mil

QR Code – 7.5 mil


OPTIONS


Electronic Article Surveillance

Compatible with Checkpoint EAS deactivation systems

Accessories

Wall mount bracket; locking mount bracket

PERFORMANCE CHARACTERISTICS


Light

Aiming pattern: single dot, 625nm LED

Source

Illumination: 630nm LEDs

Imager Field of View

46° Horizontal x 29.5° Vertical

Roll

360°

Pitch

± 65°

Yaw

± 60°

Print Contrast

25% minimum reflective difference

IMAGING CHARACTERISTICS


Graphics Format Support

Images can be exported as Bitmap, JPEG or TIFF

Image Transfer Speed

USB 2.0: Up to 12 Megabits/second

RS-232: Up to 115 kb/second

Image Transfer Time

Typical USB application is ~0.2 seconds with a compressed JPEG of 100kb

Image Quality

120 PPI on a 4 x 6 in./10.2 x 15.2 cm document @ 4.7 in./11.9 cm

REGULATORY


Electrical Safety

UL6950-1, CSA C22.2 No. 60950-1:2nd ed.,

EN60950-1: 2nd ed. + A11: 2009

IEC60950-1: 2nd ed.

LED Safety

IEC / EN 60825-1: 2001 Class 1M LED,

EN 62471: 2008

IEC 62471: 2006

EMI/RFI

FCC CFR47 Part 15 Class B: 2007,

ICES-003 Issue 4 :2004 Class B,

EN 55022: 2006 + A1: 2007,

EN 55024: 1998 +A1: 2001 + A2: 2003

AS/NZS CISPR22:2006,

VCCI:2007

Environmental

Compliant with RoHS Directive 2002/95/EC

INTERFACES


Interfaces Supported

USB, RS-232, RS-485 (IBM 46xx Protocols), Keyboard Wedge


I BARCODE SOLUTIONS
